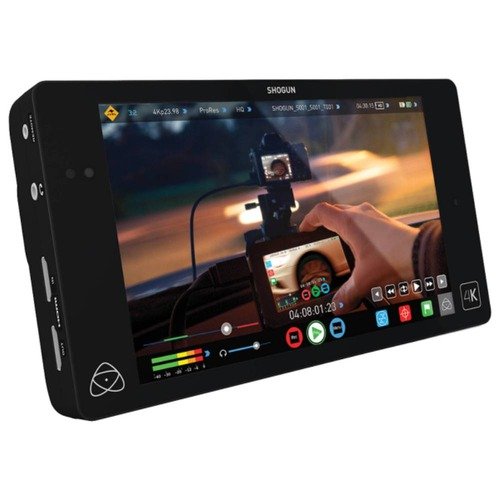

Atomos Shogun 7 Inch 4K Recorder
Original price was: ₹1,500.₹1,500Current price is: ₹1,500. / Day
- Display Size : 7.1″ (18 cm)
- Resolution : 1920 x 1200 | 325 ppi
- Touchscreen Display
- Media Rec Options : SSD Card
- Mounting : 1 x 1/4″-20 Female
- Display Size : 7.1″ (18 cm)
- Resolution : 1920 x 1200 | 325 ppi
- Touchscreen Display
- Recording Format : UHD 4K (3840 x 2160):
Color Sampling: 4:2:2 at 8- or 10-bit
Apple ProRes: HQ, 422, LT
Avid DNxHR: HQX, HQ, SQ, LB
Full HD (1920 x 1080) Color Sampling: 4:2:2 at 8- or 10-bit
Apple ProRes: HQ, 422,LT
- Supported Video Format Video Signal Conversion:
1)HDMI to SDI:
720p 50/60
1080i 50/60
1080p 24/25/30/50/60/120
2160p 24/25/30
2) SDI to HDMI:
720p 50/60
1080i 50/60
1080p 24/25/30/50/60/120
2160p 24/25/30
4K Down-Conver
- HDR10, Hybrid Log Gamma HDR Compatibility
- Aspect Ratio : 16:9
- Camera Trigger : SDI, HDMI
- Maximum Brightness : 400 nit
- Video I/O : 1 x HDMI 2.0 Input
1 x HDMI 2.0 Output
1 x BNC (12G-SDI) Output
- Color Gamut : 100% Rec. 709 (HDTV)
- Power Input : Battery Pack – 6.2V to 16.8V
1 x DC – 6.2 – 16.8V
- Media Rec Options : SSD Card
- Mounting : 1 x 1/4″-20 Female
- Magic Arm
- D-Tap Cable
- Sony NP-F970 Battery - 2Nos
- NP-F970 Battery Charger & Cable
- SSD Cards With Master Caddy - 2 Num
- USB 3.0 SSD Slim Card Reader
- LEMO Type to XLR Breakout Cable
- Carrying Case
The Atomos Shogun 4K HDMI/12G-SDI Recorder and 7" Monitor combines a color-calibrated 1920 x 1200 resolution display with 4K video recording and edit-ready codecs. The Shogun utilizes 4K HDMI and 12G-SDI inputs to record clean output signals at resolutions up to UHD 4K (3840 x 2160) at 23.98, 24, 25, 29.97, and 30p, as well as Full HD (1920 x 1080) video up to 120 fps when used with capable cameras.
The Shogun records 10-bit, 4:2:2 UHD 4K and HD video to Apple ProRes HQ, 422, or LT formats. It can also record HD video using Avid's DNxHD format and UHD 4K video using Avid's DNxHR. Video is recorded to single or raided 2.5" HDD and SDDs for fast and reliable write speeds.
As a monitor, the Shogun features a 7" IPS capacitive touchscreen display with resolution of 1920 x 1200. It is Rec. 709 color calibrated and supports multi-frequency operation (48/50/60 Hz) for monitoring of a variety of input frame rates. An SDI loop output is available for passing the signal to an additional monitor. As an added convenience, 4K signals can be internally down-converted and output in 1080p at the same frame rate.
