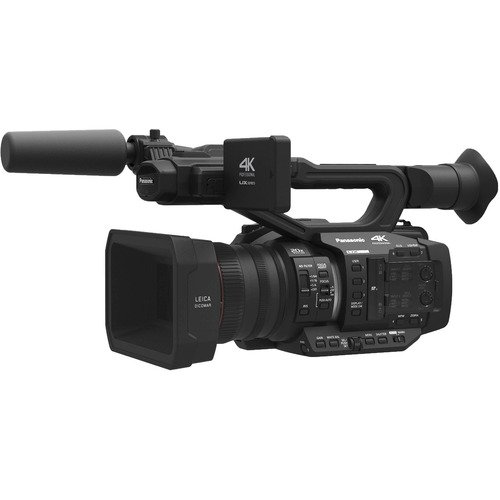

UX180

• Sensor  Resolution :  9.46 Megapixel
• Sensor Type : 1″-Type MOS Sensor
• Recording Format & Frame Rate :

MOV , MP4 , AVCHD

High-Image-Quality, High-Sensitivity 1.0-type 4K Sensor

VFR (2 fps to 60 fps)/Super-Slow Motion (120 fps/100 fps)

IR (Infrared) Shooting in Dark Places

4K/UHD/FHD/SD Multi-Format Recording

• Gain :   0 to 24 dB (Native)
  -3 to 24 dB (Expanded)
• 5-Axis Hybrid Image Stabilizer [FHD]
• Optical Zoom Ratio : 20x
• Max Digital Zoom   :     10x
• Built-In ND Filter : Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop     (1/16), 6 Stop (1/64) ND Filters
• Maximum Aperture :    f/2.8 to 4.5
• Built-In Microphone Type :    Stereo
• Focal Length     :    8.8 to 176mm (35mm Equivalent Focal Length: 25.4 to 508mm)
• Optical in Integrated Lens
  Digital
• Memory Card Type : Dual Slot: SD/SDHC/SDXC (UHS-I)
• Audio Recording :  MP4: 2-Channel 16-Bit 48 kHz LPCM Audio
  AVCHD: 2-Channel 16-Bit 48 kHz LPCM Audio

• Peripheral Connections :

Video I/O          :       1 x BNC (3G-SDI) Output
1 x 1/8″ / 3.5 mm TRRS A/V (Composite) Output
1 x HDMI 2.0 Output

Audio I/O       :            2 x 3-Pin XLR Mic /Line (+48 V Phantom Power) Input
1 x 1/8″ / 3.5 mm TRS Stereo Mic /Line Output
1 x 1/8″ / 3.5 mm TRS Stereo Headphone Output

Power I/O     :          1 x Proprietary (7.2 to 12 VDC) Input

Other I/O     :           1 x 2.5 mm Sub-Mini (Camera Interface) Control Input
1 x 1/8″ / 3.5 mm (Camera Interface) Control Input
1 x BNC (Time code) Input /Output
1 x USB-A (Camera Interface) Data Output
1 x Micro-USB (Camera Interface) Data Output

• Display Type : 3.5″   ,  Articulating LCD
• Dimensions (W x H x D) :

173 mm (W) x 195 mm (H) x 346 mm (D) (6-13/16 inches x 7-11/16 inches x 13-5/8 inches)
(excluding protrusion and eye cup)

• Weight : Body: Approx. 2.0 kg  ,  (4.41 lb)
